Newcastle Series

windows installation

Newcastle Series

Patio Doors by Windowline are built to your exact specifications. Also named sliding glass doors, our patio doors will bring an ample amount of natural light into your home while taking up minimal space. We offer several styles from traditional to a more modern look.

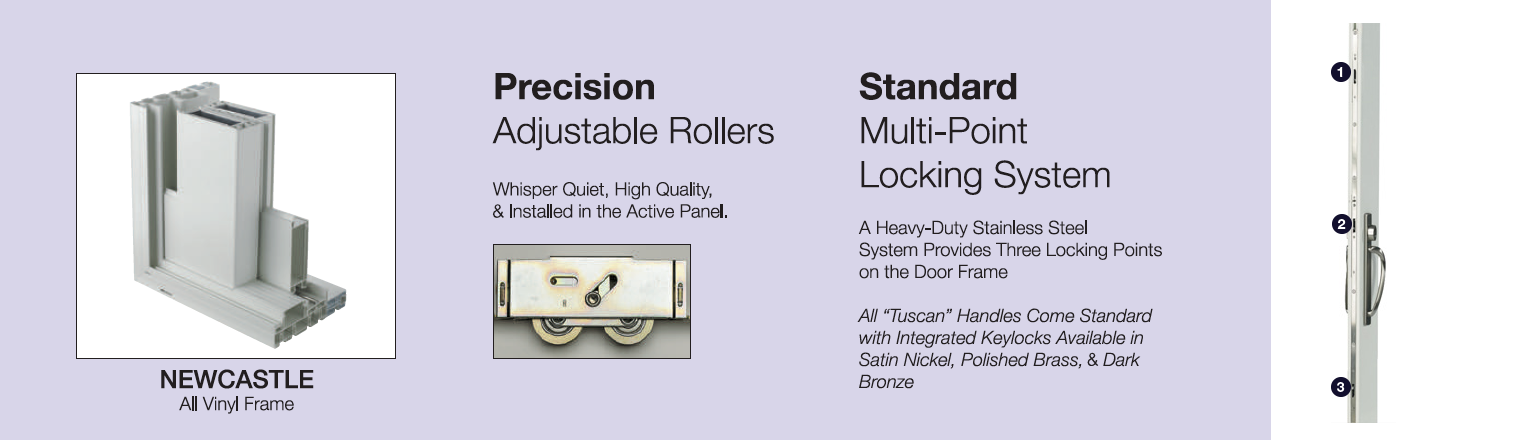

  1. Newcastle 4-7/8” All Vinyl Frame
  2. Lifetime Warranty
  3. Low-E Glass, Argon Gas and Super Spacer – “Energy Star” Compliant
  4. Three Point Multi-Point Locking System
  5. “Tuscan” Handles with Integrated Key Locks- Available in Satin Nickel, Polished Brass & Dark Bronze
  6. Heavy Gauge Extruded Maintenance Free Vinyl
  7. Triple Weather Seals
  8. Heavy Duty Aluminum Sash Reinforcement
  9. Sash Panels Equipped with Two “Whisper Quiet” Precision Adjustable Nylon Tandem Self-Lubricating Ball-Bearing Rollers
  10. Stainless Steel Roller Track for Operating Sash
  11. Heavy Duty Aluminum Screen Frame with Adjusting Screws
  12. Fiberglass Screen Mesh, Polypropylene Bug Strip
  13. 2”x5” Fusion Welded Sash Panels with 1” Tempered Insulated Glass or Optional 1-3/8” Triple Glazed Units
  14. Anodized Aluminum Sill Screen Track
  15. Anti-Lift Blocks
  16. Doors are Available Assembled Only
  17. Optional: Brickmould, Sill Extension & Jamb Extensions Available
